AirFree® Technology & Fluid Dispensing Automation

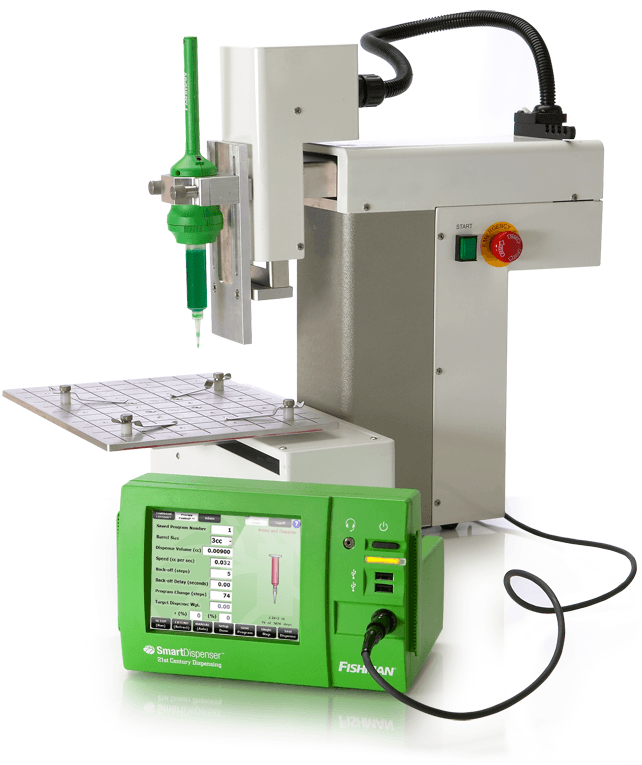

The Benchtop Automation system is a hybrid system that combines a standard benchtop SmartDispenser® with a Push-To-Connect gun and accessories typically included with an SDIK Automated kit. It is ideal for customers who wish to integrate the control unit with robotics but need full, real-time control. The Benchtop Automation system can be used as a stand-alone or with multiple work stations, producing low to moderate volumes. As an integral component in an R & D setting testing and experimentation can be easily performed with a robot to create programs before introducing them into full-scale production.

AirFree® technology acts as an additional axis when mounted on a benchtop automation system. The precise control engineered into the X, Y and Z axis is now applied to the fluid delivery axis. All axes are motor-driven lead screws with known speeds and can be coordinated, providing the highest precision and repeatability available on a desktop robot.

Fluid Dispensing Process Control

  • ProcessControl2® quantifies Fluid Dispense Program.
  • AirFree® Linear Drive System replaces air pressure, improving fluid deposit repeatability 6-10 times.
  • ProcessControl auto adjust program provides the highest fluid deposit repeatability.
  • SmartDispenser® Control Center assures the exact amount of voltage is supplied to the Linear Drive System, assuring identical performance from each SmartDispenser®.

Syringe Size 3cc 5cc 10cc 30cc
LDAV-HT-BA
Large Dot
Min. Vol. (cc)
Min. Rate
Max Rate
.00086
.022
.518
.00151
.038
.908
.00251
.063
1.504
.00494
.123
2.963
MDAV-HT-BA
Medium Dot
Min. Vol. (cc):
Min. Rate:
Max Rate:
.00043
.011
.259
.00076
.019
.454
.00125
.031
.750
.00247
.062
.481
SDAV-HT-BA
Small Dot
Min. Vol. (cc):
Min. Rate:
Max Rate:
.00022
.005
.130
.00038
.009
.227
.00063
.016
.376
.00123
.031
.741
SSDAV-HT-BA
Super Small Dot
Min. Vol. (cc):
Min. Rate:
Max Rate:
.00011
.003
.065
.00019
.005
.114
.00031
.008
.188
.00062
.015
.370
