SmartDispenser®CA Adhesive Dispensing Equipment

Problem-free cyanoacrylate dispensing!

Medical device and other manufacturers have been attracted to cyanoacrylate, also known as “CA” or “super glue,” because of its short cure time and great bond strength. Available in thin fluids or gels, the adhesive reacts with moisture ions on the surface of the conjoining substrates, thus creating the bond. The bond strength is greatly impacted by the application of the adhesive to the substrates. Too much adhesive may keep the bond from curing properly while too little adhesive may cause the bond to fail. The SmartDispenser® Cyanoacrylate System delivers all the benefits of the SmartDispenser® while eliminating adhesive dispensing problems experienced with air driven dispensing systems.

  • The patented AirFree® Linear Drive System delivers the same amount of fluid every dispense with the highest repeatability possible from a syringe reservoir assuring maximum bond strength for the entire production day.

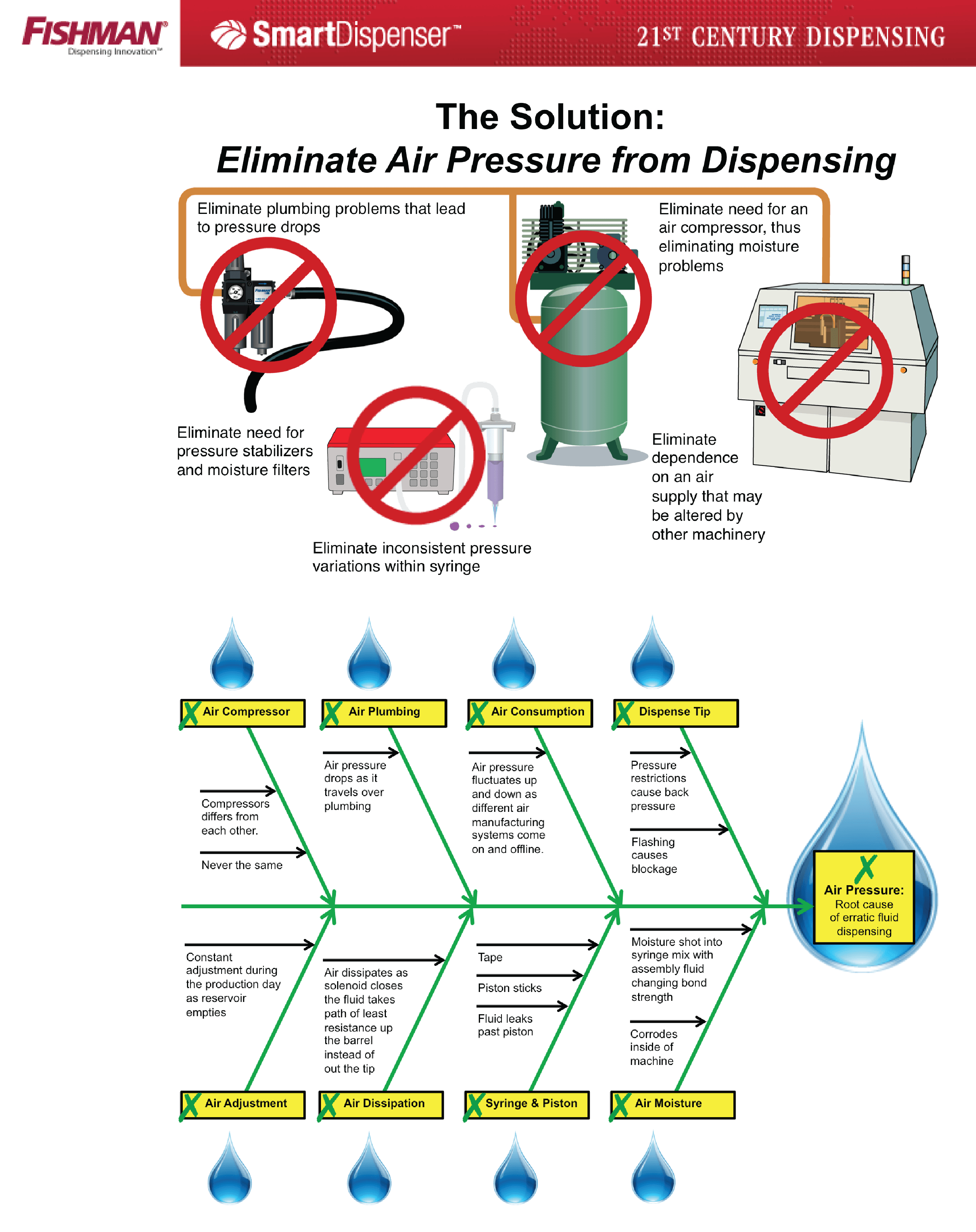

  • Air is removed from the adhesive dispensing process.
  • Genius® cyanoacrylate pistons and tip caps are molded from a proprietary plastic that inhibits the cyanoacrylate from bonding between these components and the syringe barrel assuring smooth piston travel and problem free storage.



SmartDispenser<sup>®</sup> CA adhesive dispensers

Barrel Size 3cc 5cc 10cc
LDAV
Large Dot
Any Viscosity
Min. Vol. (cc):
Min. Rate:
Max Rate:
.0009
.023
.54
.00158
.039
.946
.00261
.065
1.567

The SmartDispenser® (3-10cc)
comes with 3-10cc Dispense Gun
and 3, 5, 10cc PosiLok™ Retaining Rings.

MDAV
Medium Dot
Any Viscosity
Min. Vol. (cc):
Min. Rate:
Max Rate:
.00045
.011
.27
.00079
.020
.473
.00131
.033
.783
SDAV
Small Dot
Any Viscosity
Min. Vol. (cc):
Min. Rate:
Max Rate:
.00023
.006
.135
.00039
.010
.237
.00065
.016
.392
Barrel Size 30cc
LDAV
Large Dot
Any Viscosity
Min. Vol. (cc):
Min. Rate:
Max Rate:
.00514
.129
3.086

30cc Dispense Gun

The SmartDispenser® (30cc)
comes with 30cc Dispense Gun
and a 30cc PosiLok™ Retaining Ring
s.

MDAV
Medium Dot
Any Viscosity
Min. Vol. (cc):
Min. Rate:
Max Rate:
.00257
.064
1.543
SDAV
Small Dot
Any Viscosity
Min. Vol. (cc):
Min. Rate:
Max Rate:
.00129
.032
.771

SmartDispenser® SDAV-CA
Linear Drive System

SmartDispenser® MDAV-CA
Linear Drive System

SmartDispenser® LDAV-CA
Linear Drive System

SmartDispenser® LDAV-CA
Linear Drive System
