SmartDispenser® HT Fiber Optic Benchtop

smart dispenser logo

Fiber Optic Connector
Benchtop System

fiber optic

A Superior Solution for Precise Assembly

Fishman® offers the best possible solution for ensuring the precise assembly of LC, MT and SC fiber optic connectors. What makes this Benchtop System so unique is a series of innovations not offered by any other producer of fluid dispense systems, which are outlined here.

The Precise Assembly of Fiber Optic Connectors begins with AlgorithmicControl

algorithmic control
Traditional compressed air systems are unintelligent and, as such, can’t offer the repeatability from one fluid deposit to the next necessary for fiber optic connector assembly. Conversely, the SmartDispenser® with AlgorithmicControl is the industry’s only intelligent fluid dispensing system. With its high degree of intelligence, the SmartDispenser® is able to supply the precise amount of epoxy to each LC, MT and SC fiber optic connector, guaranteeing exact replication.

compressed air algorithmic
watch video watch video

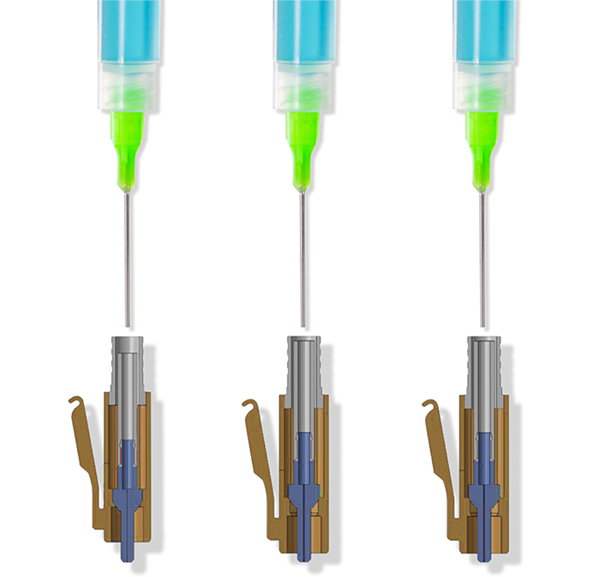

Once the fluid drive system, which is controlled by algorithms, is delivering the exact amount of epoxy for every dispense, then every fiber optic connector is filled with the exact epoxy volume.
filling syringes

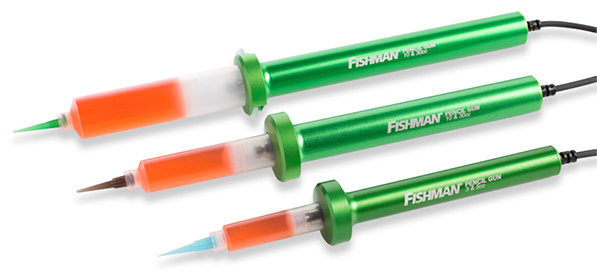

Fishman® Pencil Guns are ideal for benchtop assembly of fiber optic connectors

pencil guns
The 3, 5, 10 and 30cc Pencil Guns are lightweight, easy to hold, and ergonomically designed to ensure operator comfort. All of which makes them ideal for the benchtop assembly of LC, MT and SC fiber optic connectors. Each Pencil Gun dispenses micro dots and beads of any fluid viscosity.
download

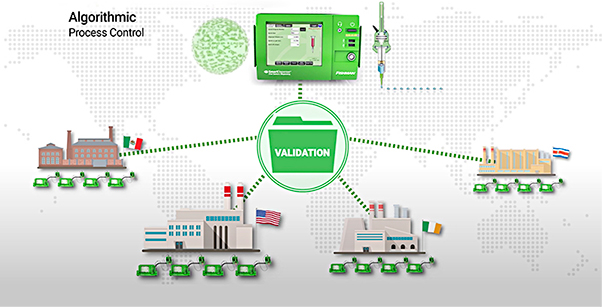

Precision repeated machine to machine, facility to facility

benchtop machine
This elevated level of precision and repeatability provides manufacturers with the ability to establish one dispense program globally with no change to fluid deposits. This means every SmartDispenser® system performs exactly the same as the next system regardless of location.

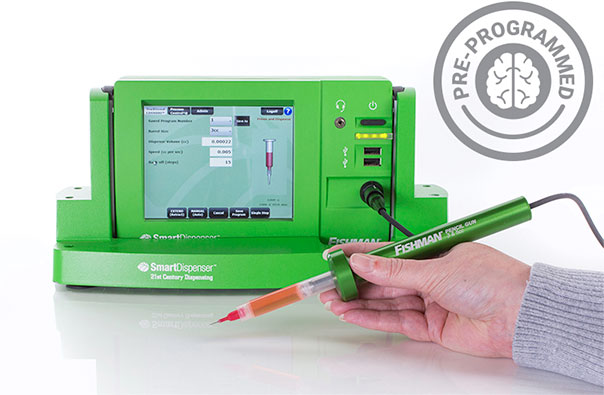

Higher precision and lower deployment costs right out of the box

benchtop
This is made possible thanks to Fishman’s® Validation Support Program. All a manufacturer has to do is send their fiber optic connectors and a sample of the epoxy they’re using to the Fishman® facility for validation testing. Once received, a fluid deposit weight study with statistical analysis is conducted. Syringe filling and fluid dispensing methods are documented by video, and the fluid dispense programs are saved on the SmartDispenser®. This ensures that the systems are ready to go to work soon after they’re unpacked, and that manufacturers profit from the lowest deployment costs of any fluid dispensing system available today.
watch video
