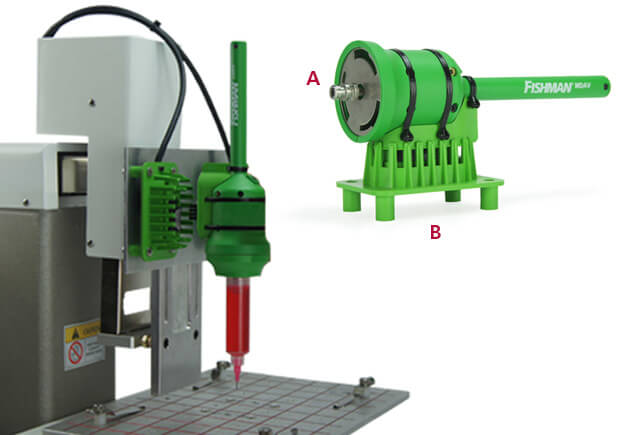

Push-To-Connect™ Gun Mount

Reduces Empty Syringe Change Over to Seconds



Simply remove the LDS Gun with the empty syringe and replace with a second LDS Gun with a full syringe.

Push-To-Connect
Gun Mount Data Sheet



Assumptions
Dot Size 0.25
Cycle Time seconds 15
Shift Length 8
Production days 260
Production Hours 2080
Hourly Labor Rate with Health Insurance 19.28



Annual Syringe Change Cost
Syringe Size – Cubic Centimeters 3 5 10 30
 Number of Fluid Deposits per Syringe 12 20 40 120
 Time to Empty a Full Syringe in Minutes 3 5 10 30
 Number of Syringe Change Overs per Year 41,600 24,960 12,480 4,160
 Time to Change Syringe Over in Seconds 5 5 5 5
Total Annual Cost of Syringe Changeover $1,114 $668 $334 $111
