OTS Automation Platform
A High-Performance Automation Platform Built for System Integrators
Reduce the amount of engineering required to build your next custom automation system. OTS provides a precision XYZ motion platform and control architecture that can be integrated and customized around your customer’s application.

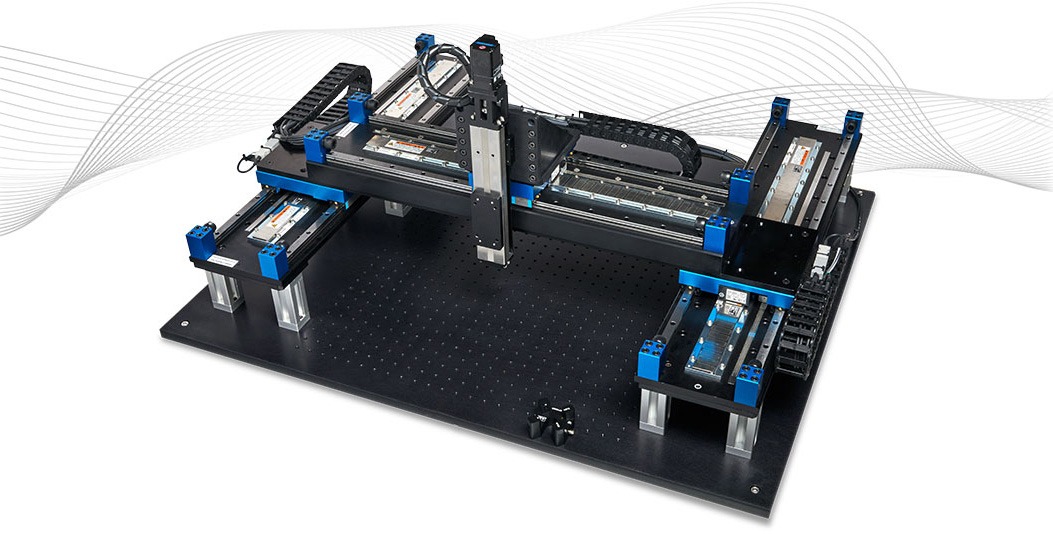

The OTS Automation Platform from Fishman® Corporation provides System Integrators with an off-the-shelf XYZ Cartesian module with ±2 µm repeatability, 10x higher precision and 4 m/s speed to help accelerate the delivery of custom solutions. In addition, its Z-Axis Zero Downtime design features a precision ball screw actuator with a tight 2 mm lead and ≤3 µm backlash, as well as a 165 mm stroke to handle tall parts. Its E-Stop Safe design also allows the Z-Axis to maintain stable motion which offers crash-proof and viscosity-safe advantages.
Test the fit of the OTS Automation Platform by DOWNLOADING a 3D CAD/STEP File.
Why System Integrators Choose OTS
Accelerate System Development
Begin with an engineered automation platform instead of building the motion system from scratch.
Integration-Ready Architecture
Incorporate OTS into a larger custom automation system built around your customer’s requirements.
Exceptional Motion Precision
Build around high-performance XYZ motion with ±2 µm XY positioning repeatability.
High-Speed XYZ Motion
Support demanding automation applications with XY operational speeds of up to 4 m/s.
Flexible Controls Integration
No proprietary HMI to work around—bring your own controls and connect via EtherCAT, Profinet, EtherNet/IP, OPC UA, or Modbus TCP.
Customize the Final System
Use OTS as the foundation while designing the tooling, process, enclosure, and application- specific elements your customer needs.

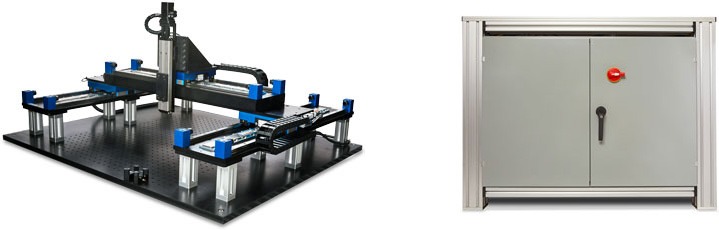

OTS Automation Platform Includes:
- Part Number: H110001
- X, Y, Z Axes for Gantry
- Electrical Cabinet
OTS Automation Options:
- Contact for Quotation
- Enclosure
To learn more about how the OTS Automation Platform can help you more quickly build a better automation solution for your customers, call Dominik Nasilowski, Head of Robotics Engineering, at (508) 686.5082.
Test the fit of the OTS Automation Platform by DOWNLOADING a 3D CAD/STEP File.
