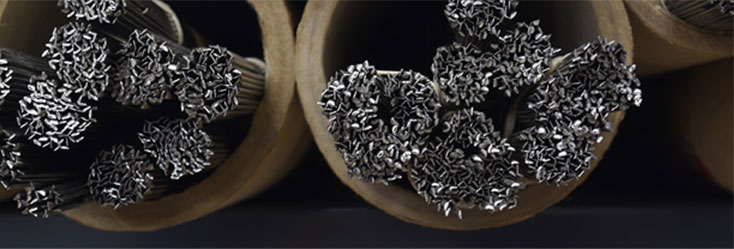

Miniature Stainless Steel Tubing
Pre-Cut Stock Lengths & Custom Tubing Lengths
When manufacturers require small diameter stainless steel tubing of the highest quality, Fishman® Corporation offers them a complete array of pre-cut stock and custom tubing lengths. For added assurance, all cut miniature stainless steel tubing is deburred, silicone-free and passivated post manufacturing process. Plus, to help make certain all manufacturing needs are met, Fishman® also supplies thin and extra thin wall tubing upon request.
Pre-Cut Stock
| Gauge | Length | Length | Length | Length |
|---|---|---|---|---|
| 14G | .484* / 12.294mm | .734* / 18.644mm | 1.234* / 31.344mm | 1.734* / 44.044mm |
| 15G | .484* / 12.294mm | .734* / 18.644mm | 1.234* / 31.344mm | 1.734* / 44.044mm |
| 16G | .484* / 12.294mm | .734* / 18.644mm | 1.234* / 31.344mm | 1.734* / 44.044mm |
| 18G | .484* / 12.294mm | .734* / 18.644mm | 1.234* / 31.344mm | 1.734* / 44.044mm |
| 19G | .484* / 12.294mm | .734* / 18.644mm | 1.234* / 31.344mm | 1.734* / 44.044mm |
| 20G | .484* / 12.294mm | .734* / 18.644mm | 1.234* / 31.344mm | 1.734* / 44.044mm |
| 21G | .484* / 12.294mm | .734* / 18.644mm | 1.234* / 31.344mm | 1.734* / 44.044mm |
| 22G | .499* / 12.675mm | .749* / 19.025mm | 1.249* / 31.725mm | 1.749* / 44.423mm |
| 23G | .499* / 12.675mm | .749* / 19.025mm | 1.249* / 31.725mm | 1.749* / 44.423mm |
| 25G | .499* / 12.675mm | .749* / 19.025mm | 1.249* / 31.725mm | 1.749* / 44.423mm |
| 27G | .499* / 12.675mm | .749* / 19.025mm | 1.249* / 31.725mm | 1.749* / 44.423mm |
| Alloy | Grade | Type | Temper | End Cut |
| Stainless Steel | 304 | Welded & Drawn | Full Hard | Square End |
*Custom Tubing Lengths Available Upon Request
Pre-Cut Small Diameter Tubing Stock
| Gauge | OD Range (inch) | ID Range (inch) | OD Range (mm) | ID Range (mm) |
|---|---|---|---|---|
| 14G | .0820-.0840 | .0610-.0650 | 2.08-2.13 | 1.55-1.65 |
| 15G | .0715-.0725 | .0525-.0555 | 1.82-1.84 | 1.33-1.41 |
| 16G | .0645-.0655 | .0455-.0485 | 1.64-1.66 | 1.16-1.23 |
| 18G | .0492-.0505 | .0315-.0345 | 1.25-1.28 | 0.80-0.88 |
| 19G | .0415-.0425 | .0255-.0285 | 1.05-1.08 | 0.65-0.72 |
| 20G | .0355-.0360 | .0230-.0245 | 0.90-0.91 | 0.58-0.62 |
| 21G | .0320-.0325 | .0195-.0210 | 0.81-0.83 | 0.50-0.53 |
| 22G | .0280-.0285 | .0155-.0170 | 0.71-0.72 | 0.39-0.43 |
| 23G | .0250-.0255 | .0125-.0140 | 0.64-0.65 | 0.32-0.36 |
| 25G | .0200-.0205 | .0095-.0110 | 0.51-0.52 | 0.24-0.28 |
| 27G | .0160-.0165 | .0075-.0090 | 0.41-0.42 | 0.19-0.23 |
**Thin wall & extra thin wall tubing available upon request.
